Trijicon RMR footprint standard
Footprinti ühilduvus selgitatud

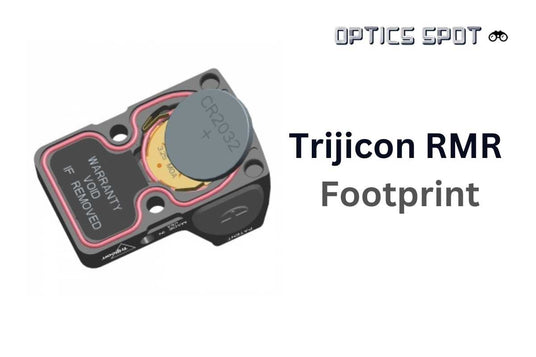

Mida tähendab “footprint”? Termin footprint viitab optikaseadme alusel olevate pesade ja kruviaukude struktuurile.
Ja mida tähendab see, kui footprintid on ühilduvad? Igal optilisel sihikul on paigaldamiseks mingi alus. Alus koosneb eri asukohtades olevatest tappidest ja kruviaukudest, mida kasutatakse sihiku kinnitamiseks kinnitusele.
Kui kaks sihikut kasutavad paigaldamiseks sama alust, ütleme, et neil on sama footprint. Selles artiklis näitame, millised punatäppsihikud jagavad sama footprinti.
Trijicon RMR footprint-muster

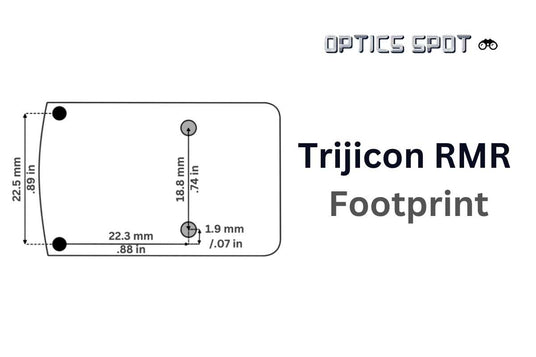

RMR footprint koosneb kahest pesast eesosas ja kahest kruviaugust sihiku keskel.

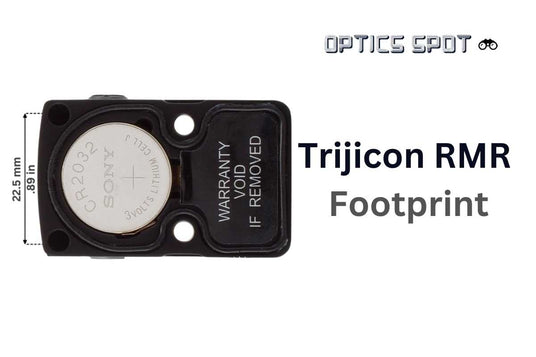

Eesmised pesad asuvad teineteisest 22,5 mm / 0.89 tolli kaugusel, kumbki sihiku esiosa nurgas. Nende kahe pesa asukoht vastab selle standardi mis tahes kinnituse paigalduspinnal olevate tappide asukohale.
Kruviaugud paiknevad umbes optilise seadme keskel. Need on mõeldud sihiku kinnitamiseks kinnitusele. Need kaks kruviauku asuvad teineteisest 18,8 mm / 0.74 tolli kaugusel.
Nende kruviaukude jaoks kasutatavad kruvid kuuluvad alati sihikuga kaasas olevasse pakendisse.
Trijicon RMR footprintiga punatäppsihikud
