C-More RTS jalajälje standard

C-More RTS footprint standard

C-more RTS jalajälje standard koosneb kahest pesast ees. Jalajälje alumises osas on ka kaks kruviauku.

Seda standardit kasutatakse peamiselt suuremate kollimaatorsihikud jaoks: kollimaatorsihikud, mis on mõeldud täissuuruses püstolitele või kompaktsetele püstolitele.

Jalajälje muster

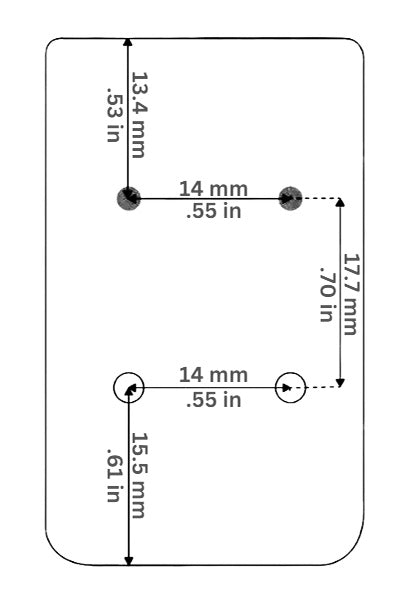

Kuidas näeb välja C-More RTS jalajälje muster? Ülal on skeem koos kõigi detailidega.

  • ees on kaks pesa, mis on üksteisest 14 mm [0,55 tolli] kaugusel, ja
  • ka kaks kruviauku jalajälje tagaosas, mis võimaldavad kollimaatorsihik kinnitamist plaadile või kollimaatorsihiku kinnitus

Paigaldamine

Kui soovite paigaldada kollimaatorsihik, mis on ühilduv C-More RTS jalajäljega, oma püstolile, on teil kaks võimalust: plaadid ja kinnitused.

  • plaadid töötavad optics ready mudelitega, millel on optic ready lõige lükandosas,
  • kinnitused töötavad standardmudelitega ja nad asendavad tagavaate sihiku sabasaba lõikes.

Plaadid C-More RTS jalajäljega

Siit leiate sobivad plaadid , mis võimaldavad kollimaatorsihik sihikud paigaldamist C-More RTS jalajälje standardiga. Ühilduvate kollimaatorsihikud täielik loetelu on artikli allosas.

Plaadid C-More RTS jalajäljega

Vaata kõiki

Kinnitused C-More RTS jalajäljega

Siit leiate sobivad kinnitused , mis võimaldavad kollimaatorsihik sihikud paigaldamist C-More RTS jalajälje standardiga. Ühilduvate kollimaatorsihikud täielik loetelu on artikli allosas.

Kinnitused C-More RTS jalajäljega

Vaata kõiki

Ühilduvad kollimaatorsihikud

Allpool leiate ajakohastatud loetelu kollimaatorsihik sihikud, mis on ühilduvad C-More RTS jalajäljega.

See tähendab, et need kollimaatorsihikud töötavad kõigi kollimaatorsihiku kinnitusplaadid või kollimaatorsihiku kinnitused ülaltoodud loetelus olevate toodetega.

C-More RTS standard

  • Benthley TSX6,
  • Benthley A1,
  • C-More RTS 2,
  • C-More STS 2,
  • C-More RTS 3,
  • C-More STS 3,
  • Delta Optical MiniDot HD 24,
  • Delta Optical Stryker,
  • Kahles Helia RD,
  • Kite Optics,
  • Kite Optics K1,
  • Sig Romeo 3,
  • Toni System ZR,
  • Toni System ZX,
  • Toni System ZT,
  • Vector Optics Frenzy 1x26x32,
  • Vector Optics Frenzy Plus 1x22x32,
  • Vortex Razor

Kollimaatorsihikud C-More RTS jalajäljega

Vaata kõiki
